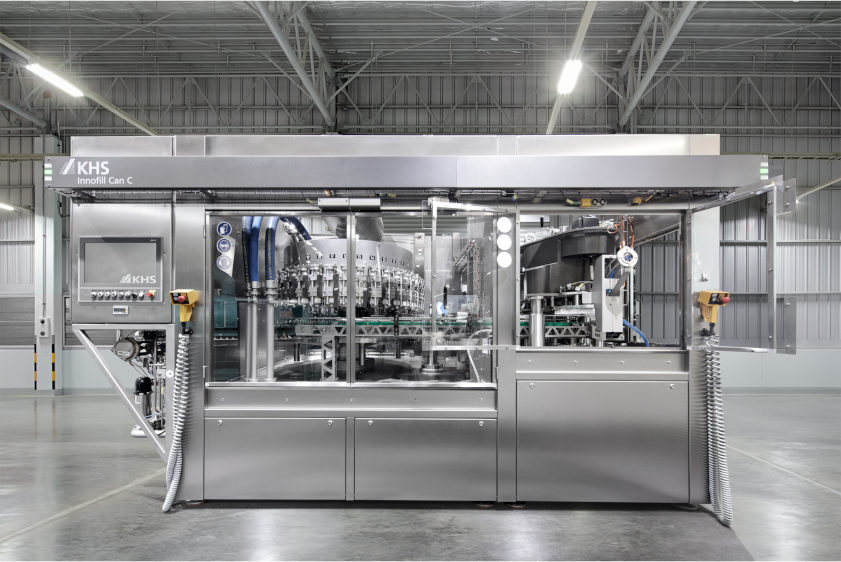

Innofill CAN Compact

Compact can filler for the low-capacity range
Innofill CAN Compact
Good to know

We also make our innovative, state-of-the art technology available to small and medium-sized breweries. This is demonstrated by our Innofill CAN Compact can filler which gives operators established high-tech in a particularly compact space. The filler, valve manifold, seamer, control cabinet and paneling form a closed unit. The Innofill CAN Compact fills between 7,000 and 40,000 cans per hour and is thus especially suitable for craft brewers.

Well thought out

With its high-quality technology on a small scale our filler for 0.2- to 1.0-liter cans is convincing. Thanks to our patented purging process this compact system has an extremely low CO2 consumption. The computer-controlled, volumetric filling system provides maximum dimensional accuracy: it ensures uniform filling levels and also that headspaces of exactly the same size are created in the cans. The hygienic design of the Innofill CAN Compact is also innovative, this safeguarded by the gapless bell guide with PTFE expansion joints (Teflon) and bells which are lifted and positioned fully electropneumatically to seal the cans. The beverage to be canned is supplied to the filling stations by a rotary distributor, thus saving space in the filler carousel. This makes the machine especially easy to access for maintenance and enhances hygiene.

The machine enables the filling of mixed alcoholic beverages, beer and csd.



Convincing
  • Compact design for the low-capacity range
  • Flexible format changing thanks to product changeovers without flavor carryover
  • Up-to-the-minute technology ensures extremely low oxygen pickup



Sustainable
  • 30% less CO2 used than on conventional systems
  • Short cleaning times thanks to an extremely hygienic design without water lubrication
  • High availability through a simple commissioning and flexible production process
Consumables

KHS MULTI GREASE 01

KHS MULTI GREASE 01 is an high performance extreme pressure lubricant. It is suitable for centralised lubrication systems.

Material numbers: 301142150102, 301142150106, 301142150108

KHS SEAL & SILICONE GREASE 04

KHS Seal & Silicone Grease 04 is a high performance silicone lubricant specially developed for the grease lubrication and sealing of tapes, valves and fittings with EPDM seals (ethylene-propylene-diene rubber) in the food and beverage processing and packaging industry, with good resistance to hot water, steam and disinfectant solutions.

Material numbers: 301142150403
