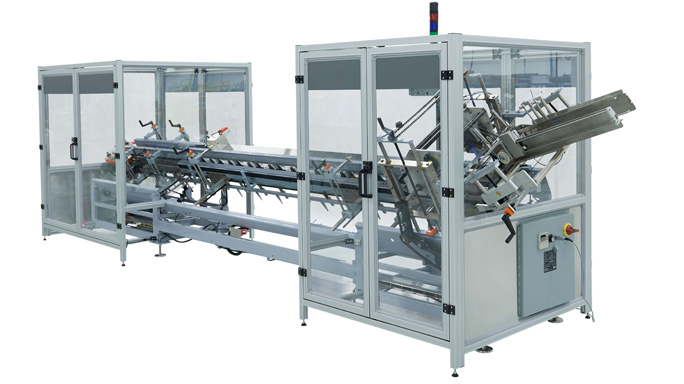

KHS Innopack Scandia H Series/420 hand-load cartoner

Ultimate reliability and simplicity in a semi-automatic manual product loading cartoner

KHS Innopack Scandia H Series/420 hand-load cartoner

Interesting facts

The KHS Scandia H series cartoners are mechanically driven semi-automatic hand-load machines that provide horizontal or inclined load areas. Simplicity of operation and its manual product loading feature make it a reliable choice for many companies. The modular design permits upgrade to multiple load stations for increased productivity.

It is an ideal solution for cartoning of your medical devices, office products, pharmaceuticals, automotive parts, prepacked food and consumer goods. Depending on product and number of loading operators this cartoner can achieve speeds up to 100 cartons per minute.

Well thought out

The KHS Scandia H series cartoner is proven for reliability, ease of operation and durability.

The robust mechanical drive system provides quiet operation and reduced maintenance and the 160˚ pre-break mechanism easily handles hard-to-open cartons to maximize throughput.

The HLH model accommodates carton size ranges from:

Minimum: 1” L x ¾” W x 3” D (25 mm L x 19 mm W x 76 mm D)
Maximum: 8” L x 5” W x 12” D (203 mm L x 127 mm W x 304 mm D)

It can run auto-bottom or pre-glued sleeve cartons with tuck or glue closer.

The HLG model accommodates carton size ranges from:

Minimum: 1” L x ¾” W x 3” D (25 mm L x 19 mm W x 76 mm D)
Maximum: 8” L x 5” W x 9.5” D(203 mm L x 127 mm W x 241 mm D)

It can run auto-bottom or pre-glued sleeve cartons with tuck or glue closer.

Additionally, this model is equipped with a proprietary 30˚ incline product load table to minimize operator fatigue.

The HAB model for auto-bottom carton erecting is well suited where vertical packing of product is preferred and is easily integrated with robots or other product fillers. It can be equipped with the optional VCC carton closer module. This model can achieve speeds up to 25 cartons per minute.

The VCC model is a vertical carton closer module that is easily integrated with our HAB auto-bottom carton erector or can be a stand-alone machine. This carton closer can achieve speeds up to 30 cartons per minutes.

Convincing

  • Mechanical and modular design for flexibility, reliability and control
  • Easy changeover for a wide range of product types
  • Ergonomic design that complements easy operation, accessibility and sanitation
  • Configurable for left- and right-hand operation and up to 5 loading stations

Sustainable

  • Reduced material waste
  • Increase your efficiency and reduce your downtime through minimum maintenance

Profit from the flexibility to run a full size-range of your products
