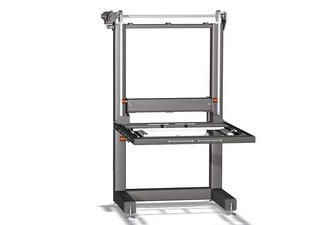

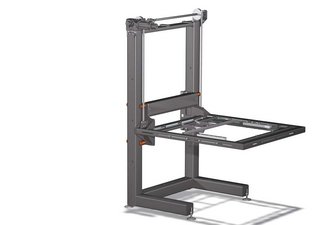

Innopal PZ Portal Centering Device

Portal centering device for maximum precision during palletization

Innopal PZ Portal Centering Device

Good to know

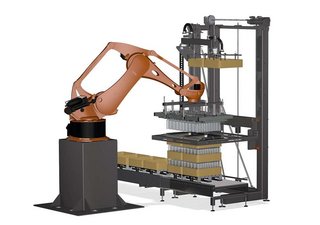

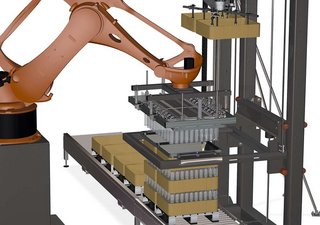

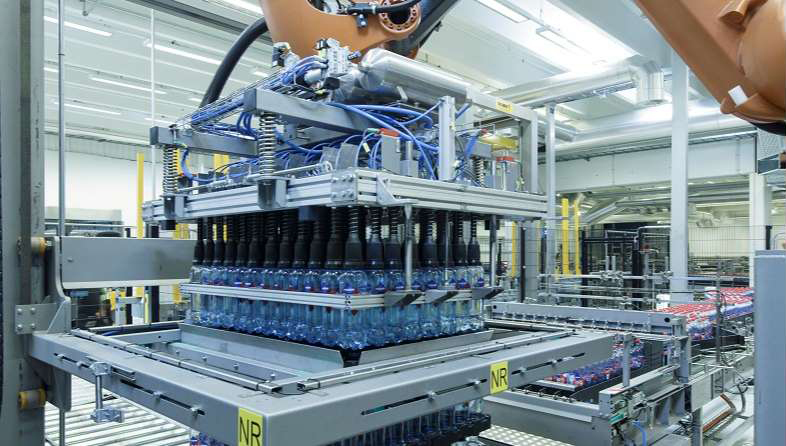

Our Innopal PZ is an attractively-priced two-column portal centering device. The pre-programmed palletizing rhythm ensures extremely high palletizing accuracy over the entire stack on the pallet. The Innopal PZ is suitable for cartons, trays (with and without film), shrink packs, individually packaged items, bags, low and high wall plastic crates, slim kegs, kegs and barrels. The throughput capacity of the centering device is matched to the palletizing robot which you are using.

Well thought out

In addition, the Innopal PZ ensures stability that is second to none. For example, the liners are precisely aligned to avoid any overhang which could damage your load-securing stretch wrapping. Our compact, attractively-priced portal centering device is just what you need for your palletizing process.


  • Height-adjustable frame for exact centering
  • The perfect enhancement to palletizers without centering device
  • Exact centering of paper liners for perfect palletizing results


  • Lubricant-free design reduces the environmental impact
  • Leading-edge servo technology, flat belts and generous design margins minimize your maintenance effort
  • Plastic-encased rollers ensure smooth travel
