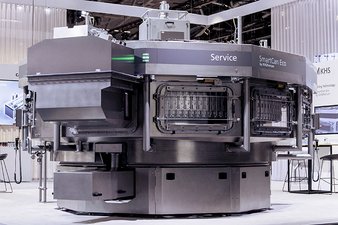

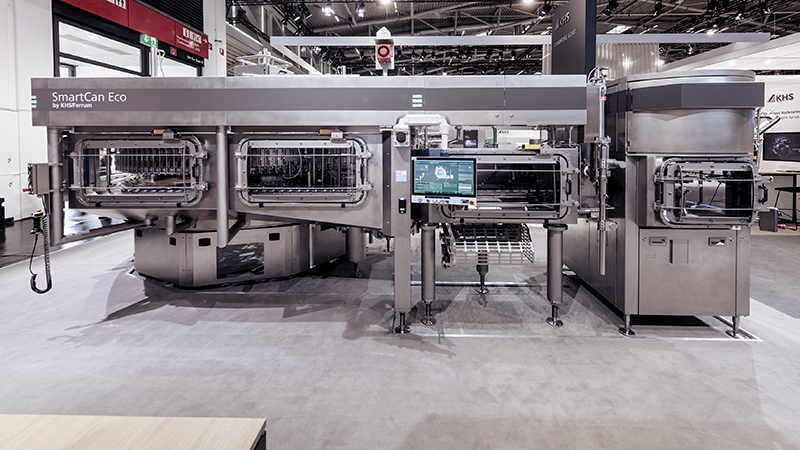

SmartCan Eco can filler/seamer block by KHS/Ferrum
Compact can filling with maximum hygiene and efficiency
Good to know
With the SmartCan Eco by KHS/Ferrum, the KHS Group and Ferrum Packaging AG are setting new standards in can filling. The compact can filler/seamer block combines hygienic design, modular performance and optimized use of resources. Its drastically reduced hygiene area that’s up to 93% smaller than the classic housing makes cleaning easier – plus it saves on space. Outputs of up to 136,000 cans per hour in modular operation also make for a high level of productivity.
Well thought out
The SmartCan Eco is a logical addition to the successful SmartCan series. Each component has been optimized with respect to efficiency, hygiene and ease of operation. Precise filling valves with electromagnetic inductive flow metering ensure exact filling volumes. Separate belt and screw drives, pneumatic bell actuators and servo controllers in the Ferrum FS-series seamer permit simple and gentle processing of lightweight cans. The up to 93% smaller hygiene chamber lowers air and filter requirements from eight to ten to one to two sterile air blowers and enables simultaneous interior and exterior cleaning.
Convincing
- Modular design for outputs of 60,000 to 136,000 cans per hour
- Simultaneous interior CIP and exterior COP in circulation without foaming
- Automated, recipe-controlled format changes for fast product changeovers
Sustainable
- The up to 93% smaller hygiene area saves space, air and energy
- Less electricity, water and fewer chemicals used in operation
