Innopack Kisters TSP Advanced tray shrink packer

Future-proof packaging technology with high flexibility

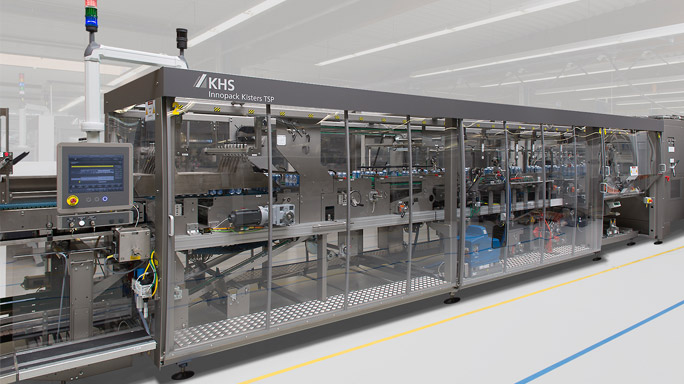

Innopack Kisters TSP Advanced tray shrink packer
The all-rounder

Further reading

The all-rounder

Our Innopack Kisters WSPP-A all-rounder designed for growing customer and market requirements is now even more flexible and efficient.

Learn more

Good to know

The Innopack Kisters TSP Advanced is a fully automatic packing machine that produces trays, film-wrapped trays, film-wrapped pads, and film-wrapped packs. With its extremely varied number of pack and loose product packaging formats for PET, glass, and cans, our Innopack Kisters TSP-A has a very broad product spectrum. The modular tray shrink packer in single-lane operation for trays and film-wrapped trays can produce up to 7,200 packs an hour. When producing film-wrapped packs only, the TSP can even be operated on up to four lanes. Exact and tight folding of blanks ensures maximum pack stability; printed film is also processed with the highest positioning accuracy. Our range of services provides a reliable supply of spare parts and offers a number of conversion options to keep your line powerful, sustainable and future proof.

Well thought out

State-of-the-art process and functional modules enable you to quickly and easily change to other formats and capacity levels. With the integrated high-tech film cutting and feeding system you can process very thin shrink film. The Innopack Kisters TSP-A gluing system also works with the utmost precision, so that your glue consumption is kept to a minimum. The optional Eco shrink tunnel operating with gas porous combustion technology also permits you to considerably reduce your energy costs and CO2 emissions. Using film made of 100% recycled material also reduces the packaging’s carbon footprint without any detriment to the pack stability or flawless appearance at the point of sale.

Convincing

  • Maximum flexibility through fast and easy format changeovers
  • Very high-quality standards ensure a machine availability of up to 98.5%
  • High-precision folding of the cardboard blanks and perfect film positioning ensure a minimum use of materials

Sustainable

  • Minimize your spare part costs thanks to a low number of wear parts
  • Future-proof thanks to a modular machine design that is expandable at any time
  • Cut your carbon emissions by up to 65%* by using film made of fully recycled material.

*: According to market information from various film manufacturers

Options

  • Film made of 100% recycled material

    Brief description: All KHS shrink packers can also be converted to this type of film. This upgrade can usually be easily retrofitted during ongoing production.

    Benefits: By switching over to film made entirely of recycled material, you can significantly cut your carbon emissions in the packaging process in the long term without having to do without safe, high-quality secondary packaging.

    Convincing: Should you have any questions about possible film thicknesses, shrink results or appearance, please feel free to contact us. On request we can test the film provided by your supplier at our special film laboratory for these parameters and give you the go-ahead for conversion quickly and reliably.

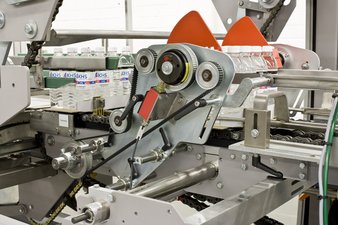

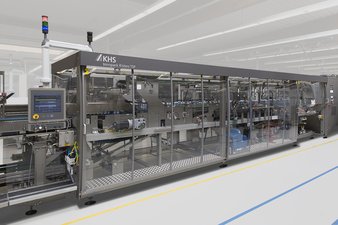

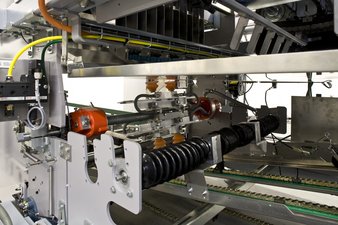

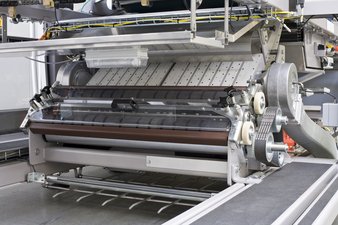

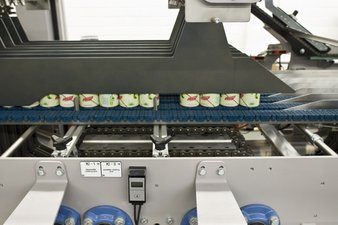

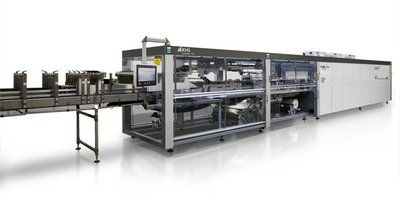

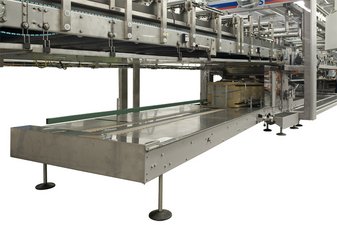

Images & videos

Consumables

KHS MULTI GREASE 01

KHS MULTI GREASE 01 is an high performance extreme pressure lubricant. It is suitable for centralised lubrication systems.

Material numbers: 301142150102, 301142150106, 301142150108

KHS HIGH PRESSURE GREASE 02

KHS High Pressure Grease 02 is a water resistant extreme pressure lubricant.

Material numbers: 301142150204, 301142150210, 301142150202

KHS BEARING GREASE 06

KHS Bearing Grease 06 is specially developed for the grease lubrication of machinery in the food and beverage processing and packaging industry.

Material numbers: 301142150606

KHS GEAR FLUID 220

KHS Gear Fluid 220 is a fully synthetic high performance gear oil with EP properties.

Material numbers: 301142110507

KHS GEAR FLUID 460

KHS Gear Fluid 460 is a fully synthetic high performance gear oil with EP properties which have been specially developed for use in machinery used in the food and beverage processing and packaging industry.

Material numbers: 301142110207, 301142110209

Innocoll HMP 3081

The product is used for carton and card board boxes sealing and making, tray making in very fast machines. The adhesive has a good "hot tack", very low odour and a good thermal stability.

Material numbers: 301244605220

KHS CHAIN FLUID 150

KHS Chain Fluid 150 is a fully synthetic high performance, anti-wear chain oil which have been specially developed for use in machinery used in the food and beverage processing and packaging industry.

Material numbers: 301142110105, 301142110107
