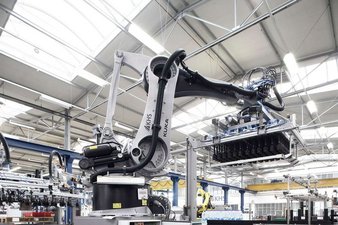

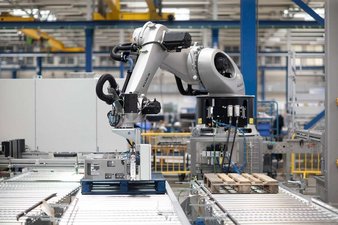

Innopal RK articulated robot

Innovative palletizing robot with 360° working radius for non-returnable and returnable containers

Innopal RK articulated robot

Good to know

Thanks to its comprehensive 360° working range, the Innopal RK multi-axis-controlled articulated robot guarantees you an extremely high measure of freedom when designing your conveyor system as it has no dead spots. It effortlessly palletizes high-wall and low-wall plastic crates, kegs, slim kegs, barrels, cartons, trays (with and without film), shrink packs, individual packets and bags. The up to six axes are able to undertake even the most complex of tasks and move a working load of up to 570 kg.

Well thought out

Thanks to the automatic head change feature, this robot is your first choice for the combined processing of non-returnable and returnable packaging. Freely programmable, the RK offers you the latest robot technology in the smallest space. And it shines with regard to sustainability with recovery of braking energy, absolute encoders and bus technology, all thanks to the modular control system.

Colleague robot

Further reading

Colleague robot

KHS high-tech systems master tasks such as sorting, distribution, depalletizing, palletizing and stacking efficiently, flexibly and economically: a summary.

Learn more


  • Numerous additional functions for keg processing
  • Consistent modular design guarantees flexible changing of palletizing and depalletizing task
  • High system availability thanks to optional fully automatic format changeover


  • Benefit from low space and energy requirement
  • Minimize maintenance effort by using the latest robot technology and generously dimensioned components
